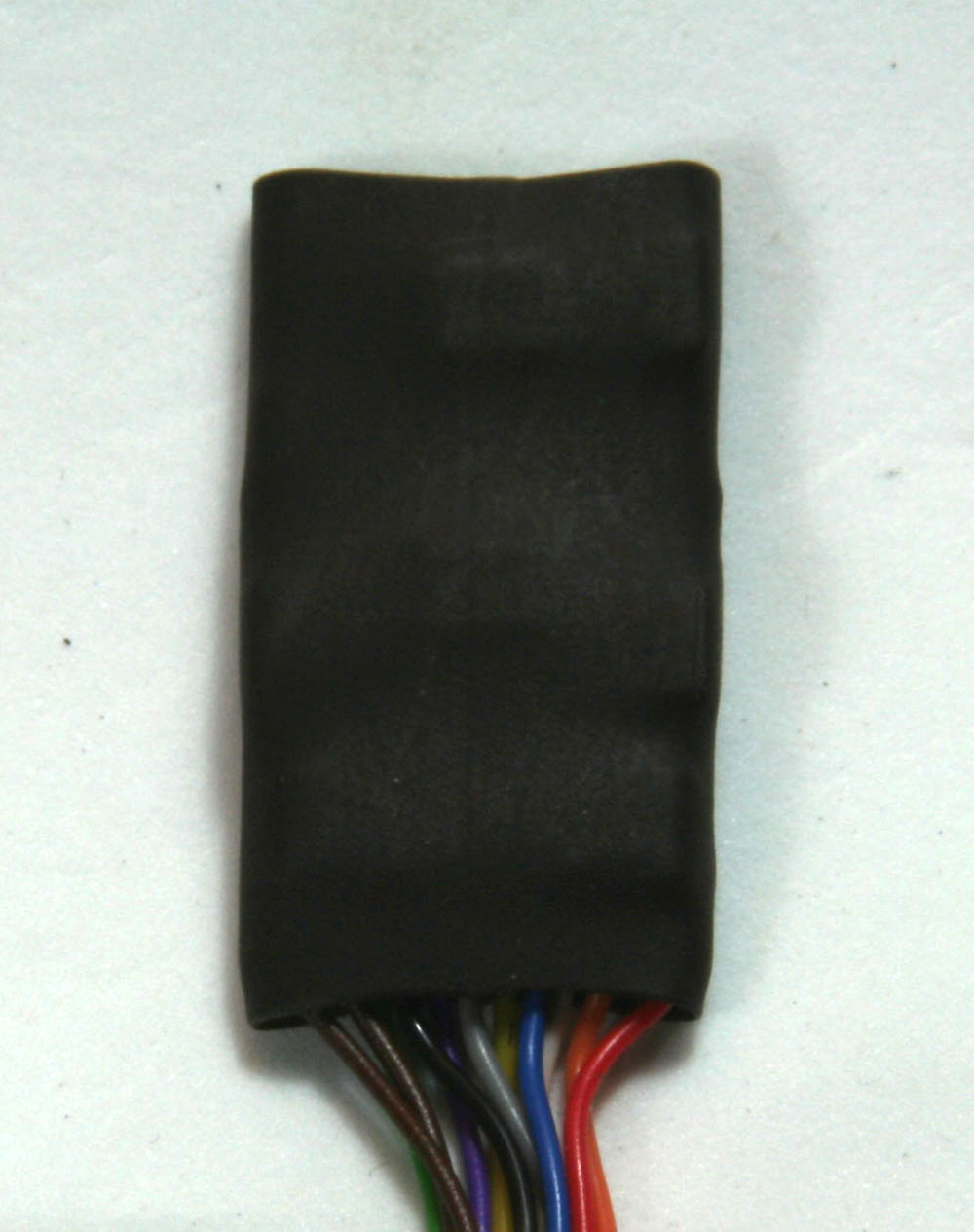

CT SL51-4 Full Sound/Motor/Function Decoder

YouChoos Products

CT SL51-4 - Specification, Hints and Tips

Specifications

  • Motor Output: 1.5A continuous / 2A peak
  • Dimensions: 26 x 14 x 3.3 mm
  • Speaker: 1W / 8ohm
  • Function Outputs: 8 (4 wired + 4 solder pads)
  • Function Output Power: 500mA per output / 600mA max total
  • Connector: Wires or 8-Pin (other conversions possible)
  • Suggested Application: OO and some O
  • Sleeve: Supplied with protective sleeve
  • See full Revision 4 Specifications


Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
