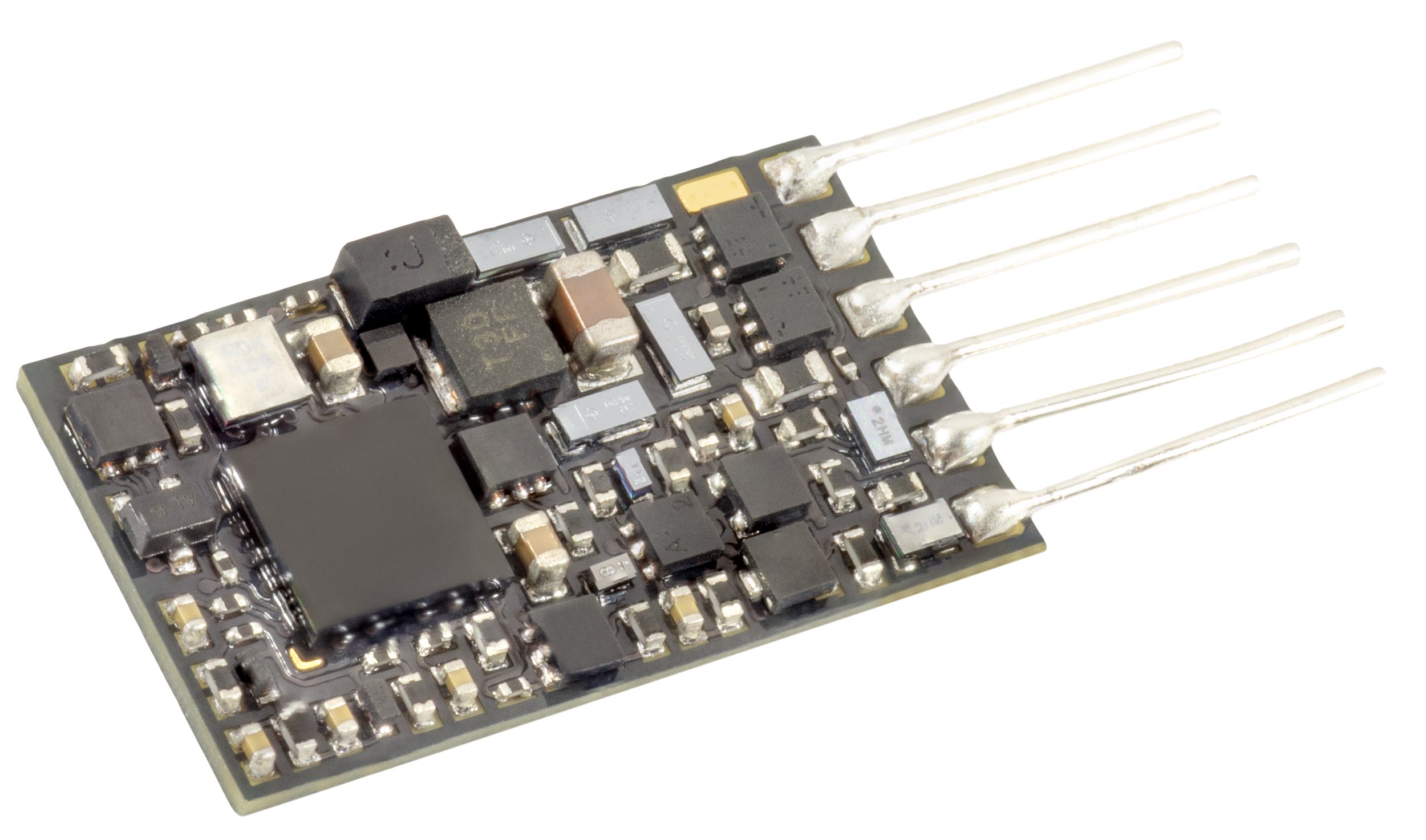

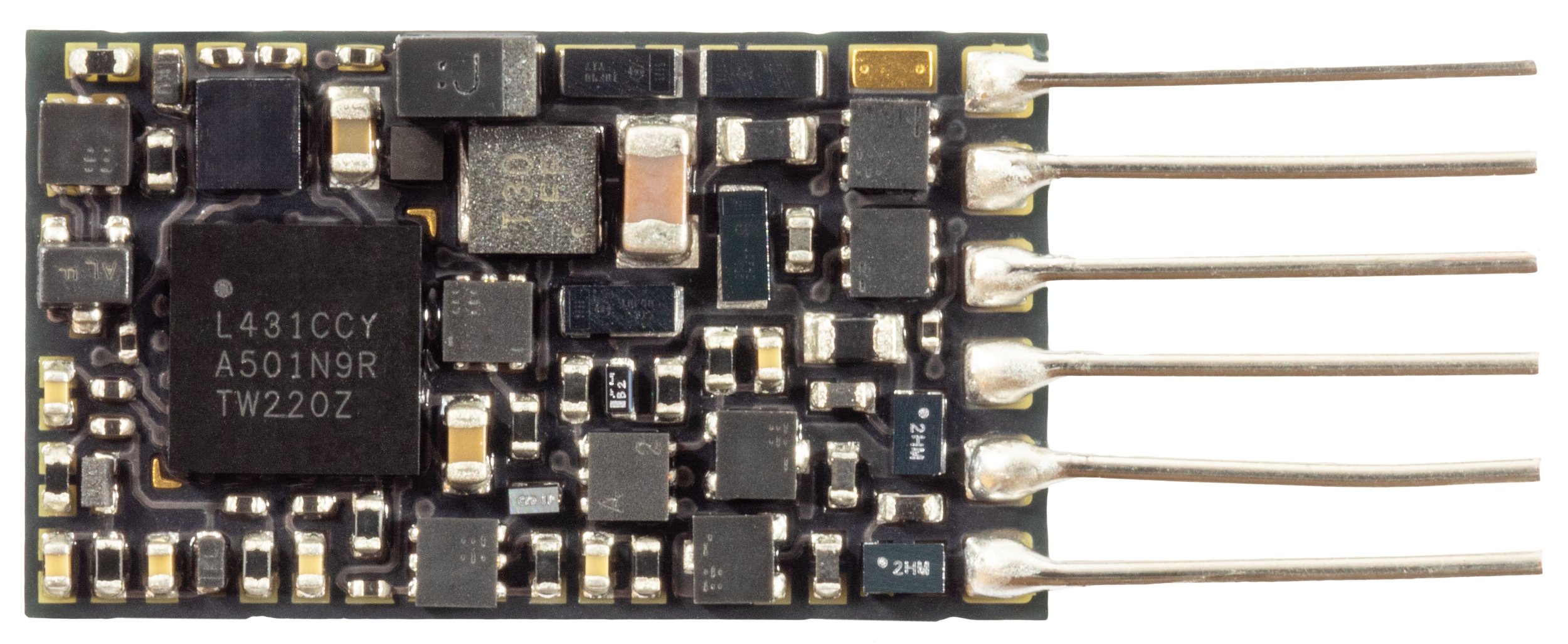

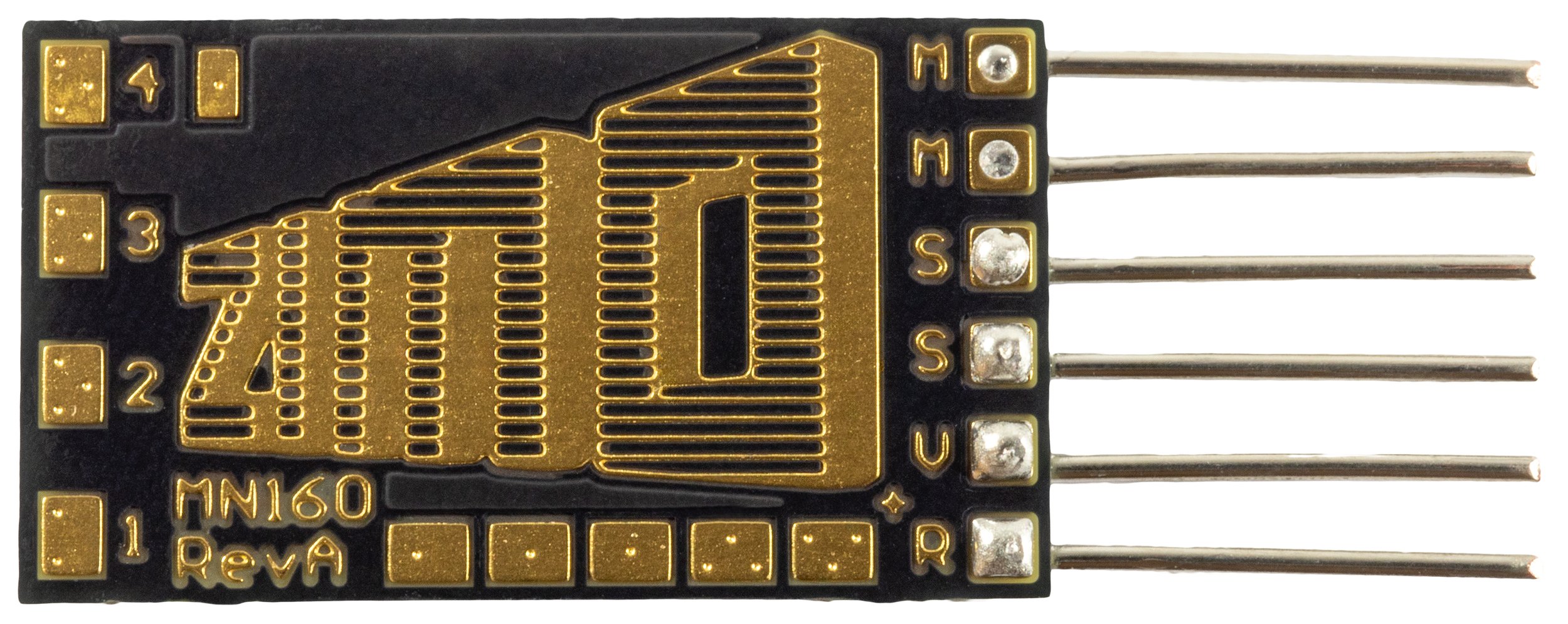

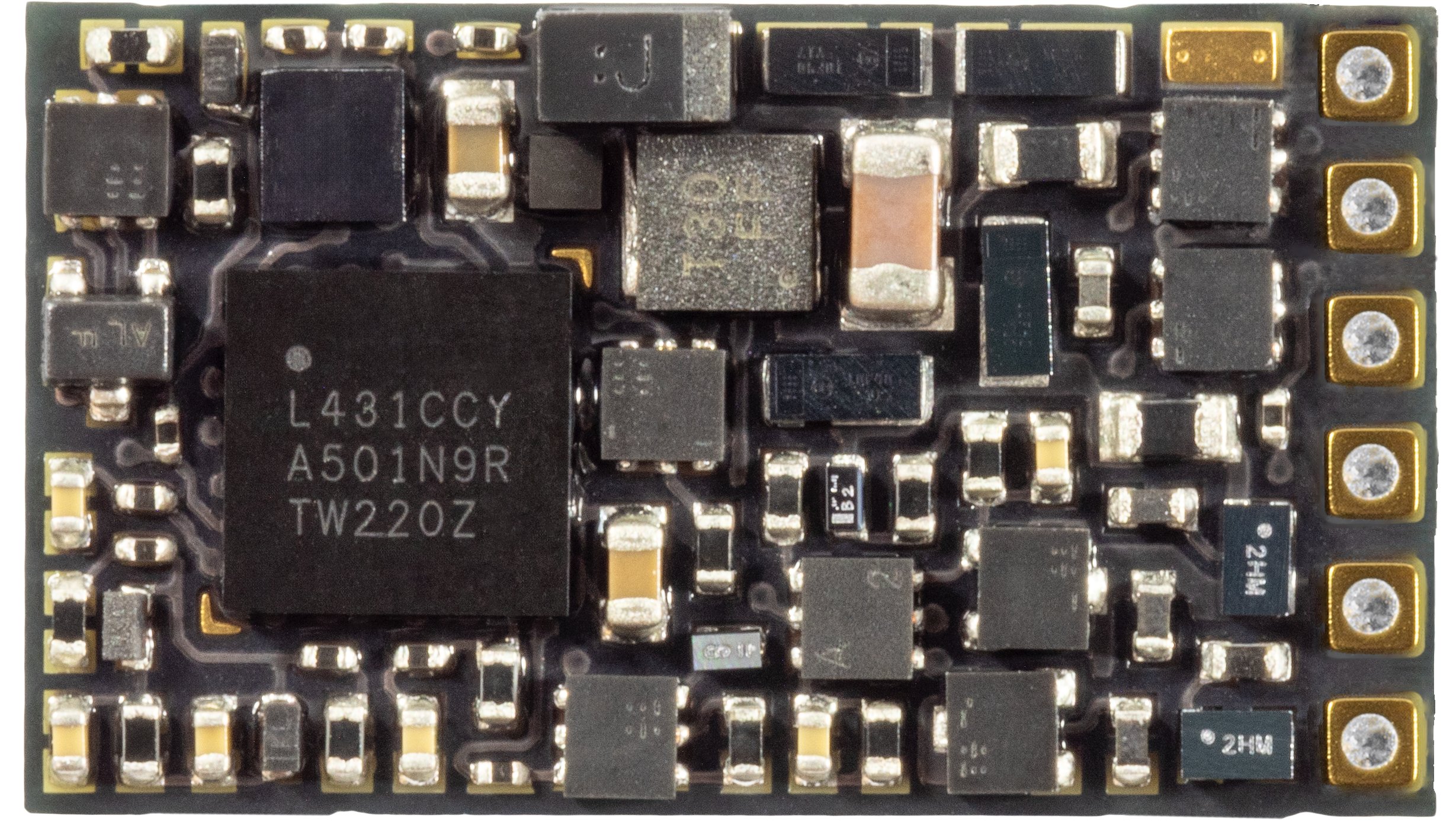

Zimo MN160 ('N' 6pin direct, 'L' 6pin right-angled, or wired) Standard Decoder

Code: MN160

× Cancel

Zimo MN160 Standard Decoder

12x8.6x2.3mm 0.7A continuous / 1.5A peak Stay-Alive via LifeLink/SACC16/STACO 'N' 6pin direct, 'F' 6pin on harness or 'R' 8pin on harness 6 full power outputs, 2 logic-level

Variants / Sub-Products

MN160N	× Cancel	'N' Version 6pin direct plug-in
MN160	× Cancel	wires

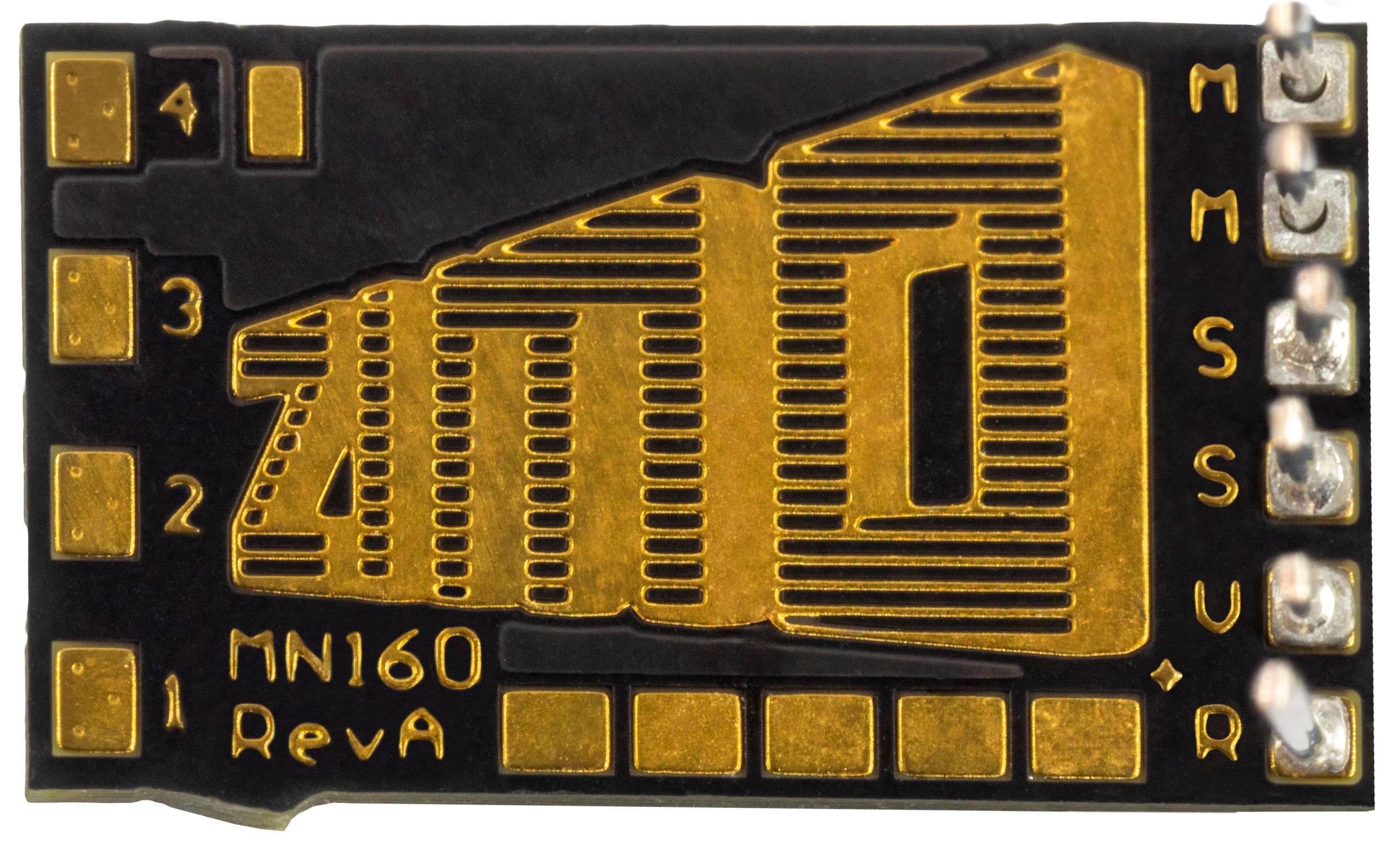

MN160L	× Cancel	'L' Version 6pin right-angled

Description

The MN160 standard decoder from Zimo uses the same technology platform as Zimo MS sound decoders, just without the audio facilities.

Technical Specification

• 0.5A continuous motor output / 1A peak for short periods
• 4 full power function outputs, max combined 0.5A
• 2 logic level outputs e.g. servo control / SUSI
• Stay-Alive is achieved through LifeLink/SACC16 or via a STACO kit
• Railcom
• DCC, DC-Analog, MM, AC-Analog, Mfx

×
