Graham Farish N Gauge LNER A2 Class with DCC Sound

Example 1: MX648 sound with speaker in the loco

Kit: Zimo MX648 and YouChoos Minnow4 speaker

Not the simplest model to squeeze sound into, but here's one possible approach...

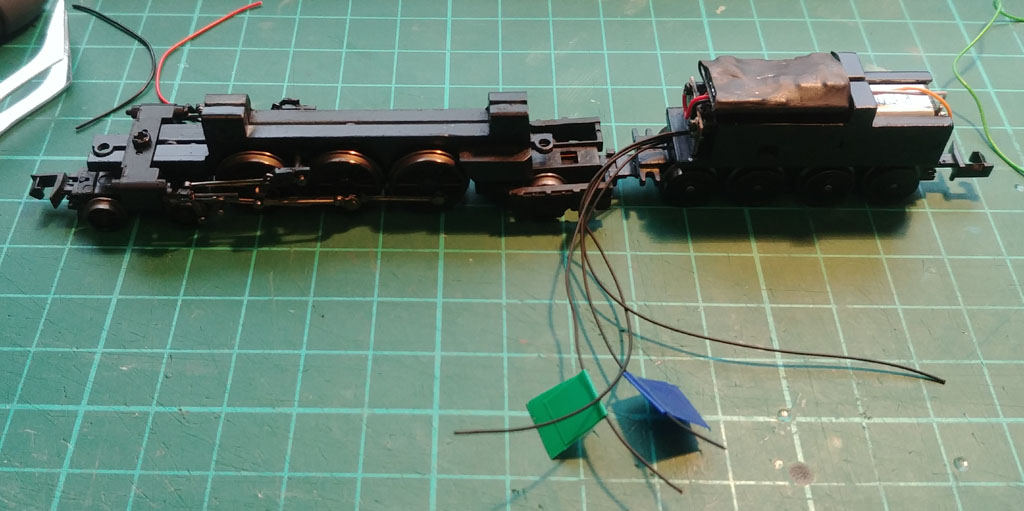

Remove DCC socket and PCB, hard-wiring MX648 in the tender, with wires trailing forward to speaker (Minnow4), which just fits in the boiler on its' side.

Example 1 Example 1

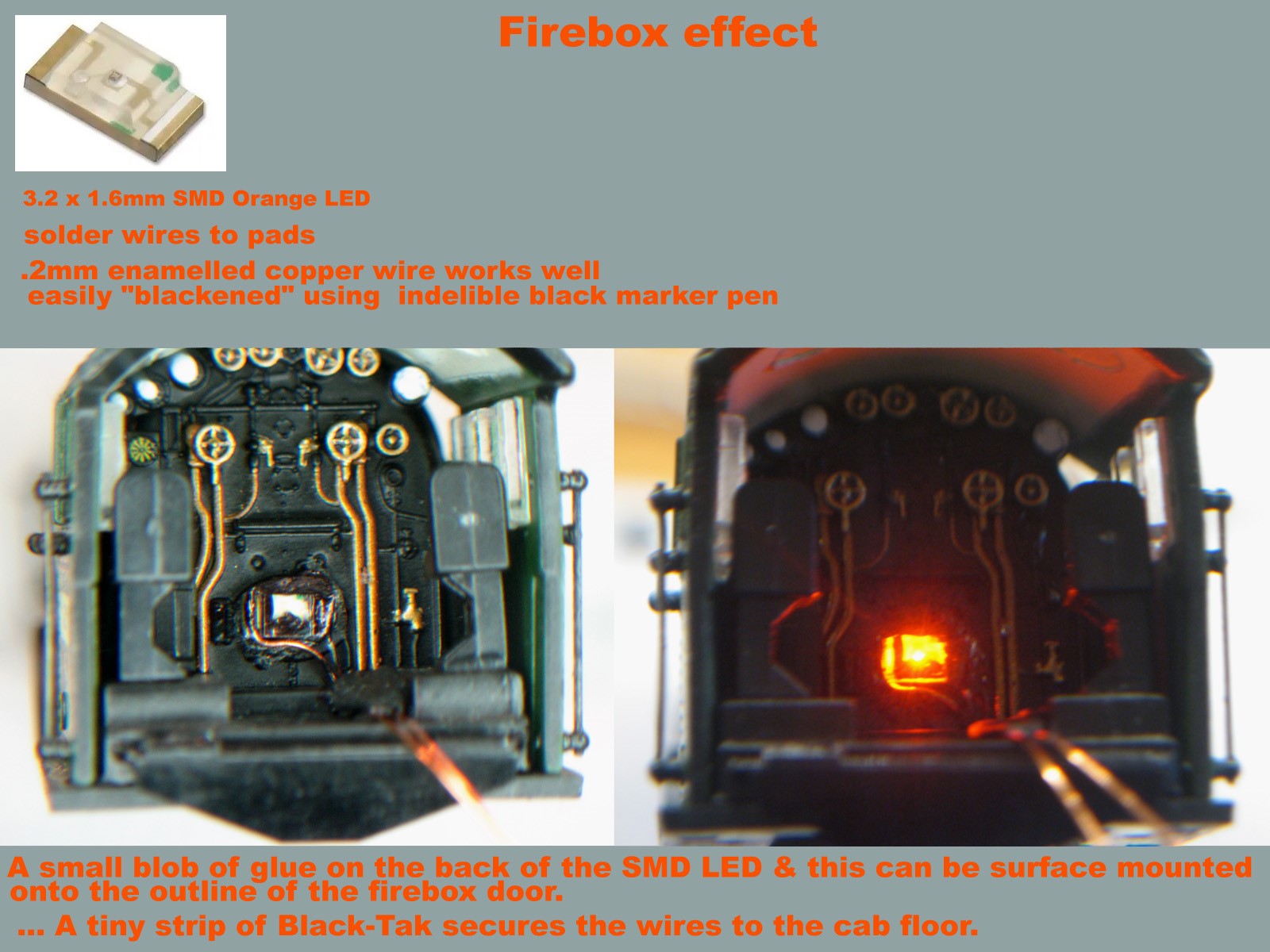

In this example, the customer also added a firebox light (nano LED), hence why 4 wires to the loco (2 for speaker and 2 for light).

Example 1 Example 1

Photos courtesy of Ashley Dease-Vincent

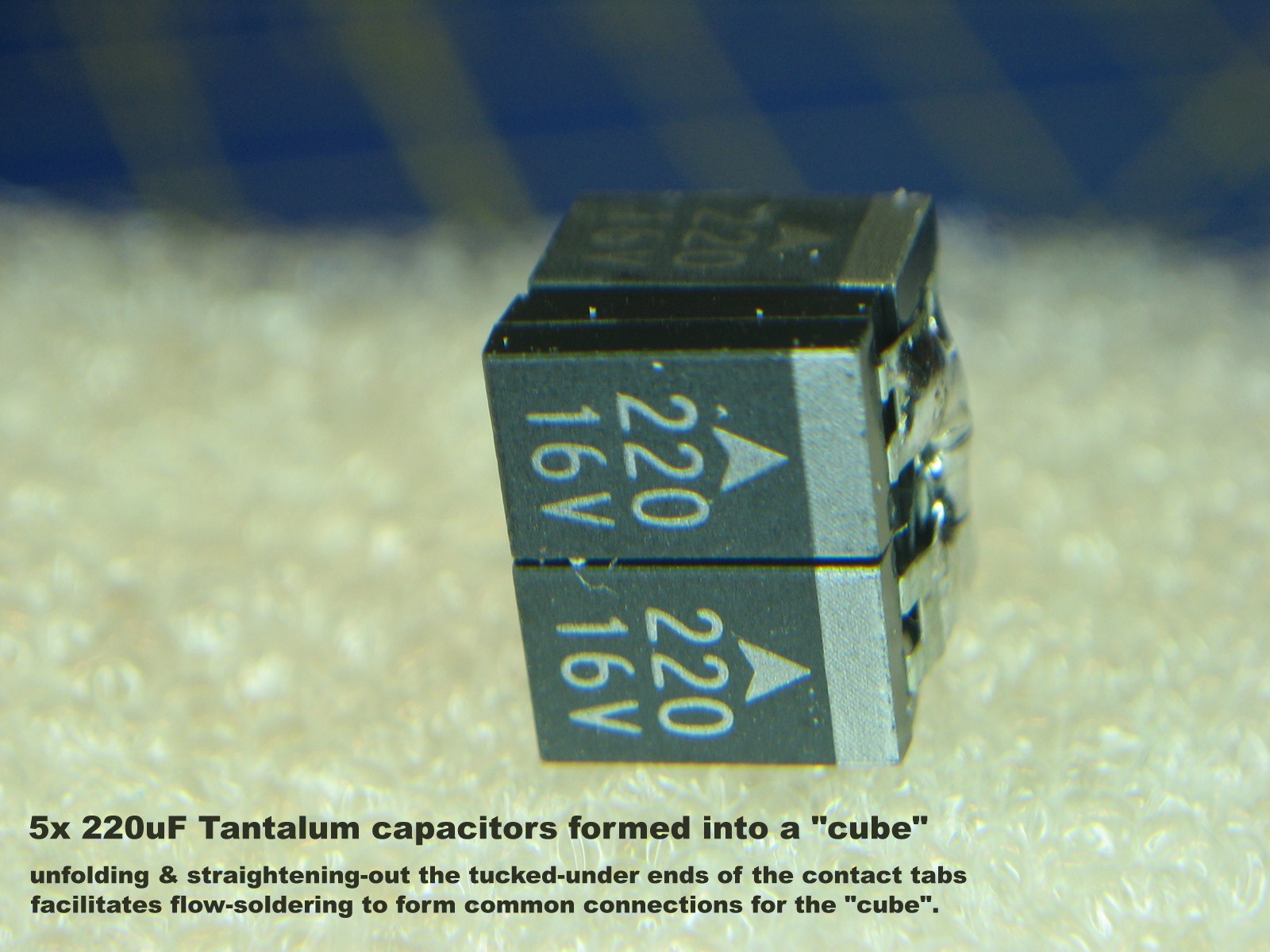

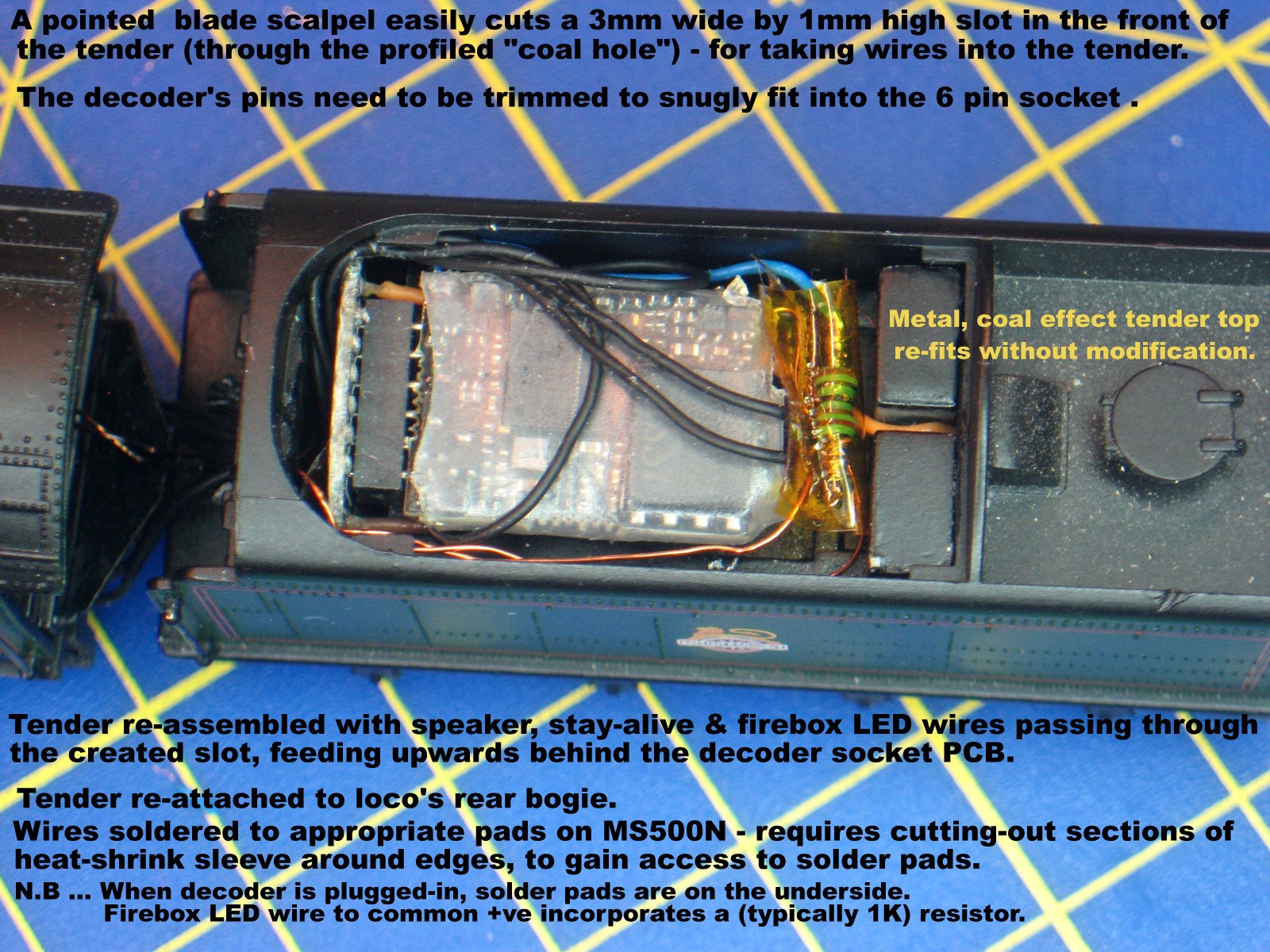

Example 2: MS500N with stay-alive

Example 2

Example 2 Example 2

Example 2 Example 2

Example 2

Photos and method kindly supplied by Tim Maggs.

Disclaimer

Please note that these guides are provided as useful resources for you, as-is. YouChoos cannot be held responsible for errors in the information, or for any damage caused to your models or equipment if you choose to follow any of the steps detailed here.
